Morfuns Bicycle

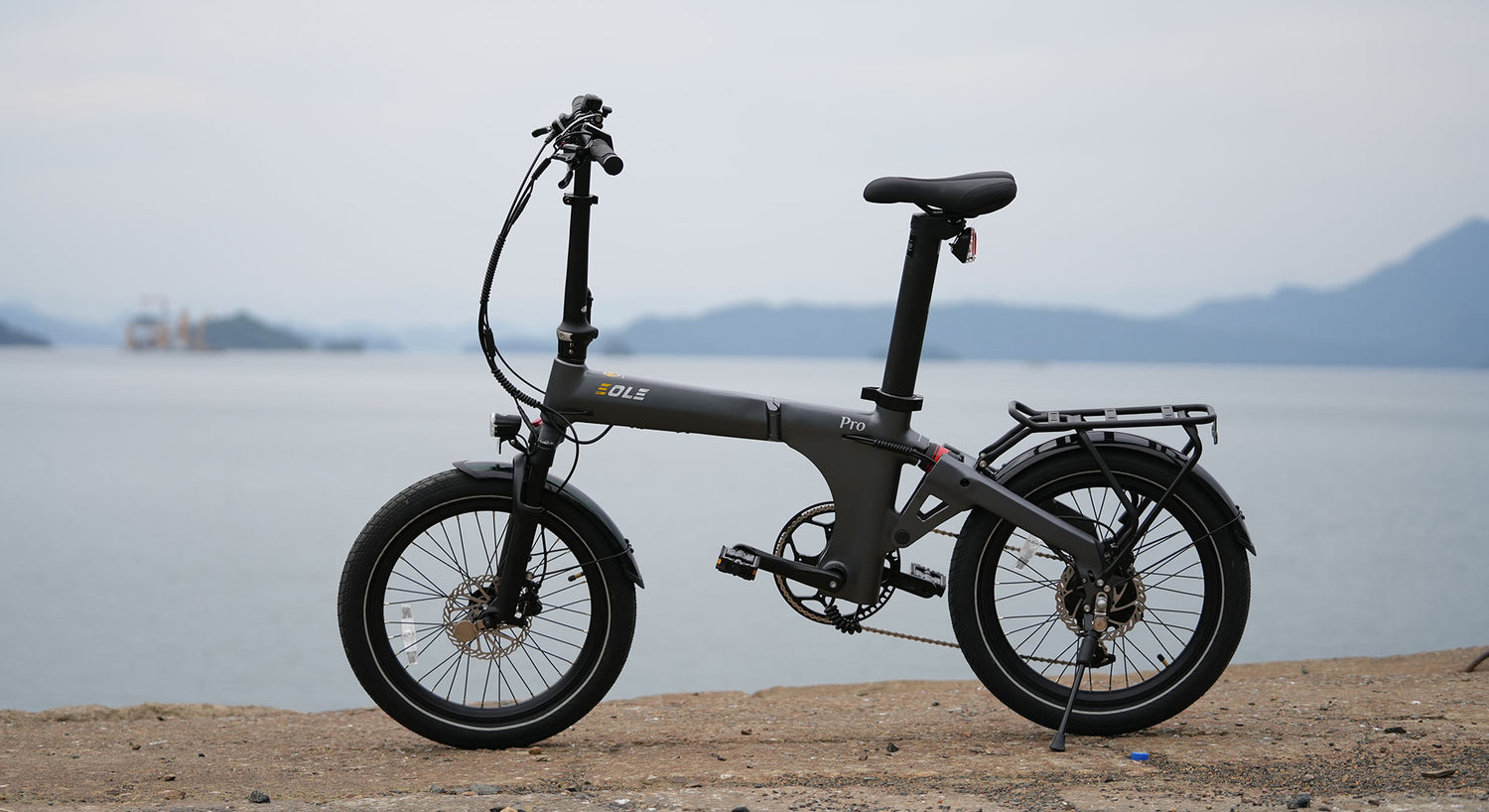

EOLE X PRO Full Suspension E-Bike
EOLE X PRO - A smooth ride, wherever you are. The addition of the full suspension system is effective to minimise the judder on uneven terrains. With big battery capacity 36v 10ah (15ah optional), the range can be 115 km. It is designed to provide commuters more comfotable experience on hilly routes.
FEATURES
-
250W/350W Brushless Gear Hub Motor
The 250w motor is designed for Europe and AU customers (Top speed 25km/h) and the 350w motor for other countries (Top speed 19mph).
-
9 Speed Gear Shift
The 9 speed gear shifter is designed to enhance your riding experience and allows you to change the gears for adapting to different terrains.
-
36V 10 /15Ah Big Capacity Battery
Uses high-quality LG cells and doubles up as the seat post – optional 15Ah battery available. A power switch is added on the top for safety and energy-saving.
-
Oil Hydraulic Brake
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking efficiency for 5 years.
-
Innova 20*2.4 Puncture - proof Tire
The puncture-proof tires provide upgraded grip and superior shock absorption ability. These tires guarantee your safety.
-
Morfuns Comfortable Saddle
The Saddle has the right balance of firmness, specially made for pressure relief. You will feel comfortable on it.
-
Coloful LED Display
It offers all of the usual functionality you’d expect on an e-bike display. Plus, it’s in colour which is a nice touch.
-
Full Suspension System
PRO is an upgrade version based on EOLE X, equipped with both front and rear suspension.
SPECIFICATIONS
ELECTRONICS
| NAME | SPECIFICATION |
|---|---|
| Battery | 36V 10Ah LG Lithium Battery |
| Charger | 100-240V Smart Charger |
| Controller | FOC |
| Display | Morfuns Colorful LED |
| Hub Motor | 36V 250/350W High Speed |
| Pedal Assist | 5 level pedal assist |
| Throttle | Available |
| Wiring | Water-resistant connectors and wiring harness |
| Sensor | Cadence Sensor |
| Charging Time | About 4 Hours |
BIKE COMPONENTS
| COMPONENTS | SPECIFICATION |
|---|---|
| Frame | Aluminium Alloy |
| Front Fork | Suspension |
| Suspension | Full Suspension |
| Derailleur | L-TWOO Outer 9 Speed 11-36T |
| Chain Wheel | Prowheel 52T Plastic Cover |
| Brake Level | Oil Hydraulic Brake |
| Brake | Disc Brake 160mm |
| Handlebar | Al-alloy |
| Saddle | Zeus Comfort |
| Pedals | Wellgo Foldable Pedals |
| Seat Post | Al-alloy |
| Tire | Innova 20*2.4 Pucture-proof |
| Stem | 3D Integrated forging Al-alloy 6061 |
GEOMETRY
